Name: WXC Automotive Cable
Brand: Zion communication OR OEM
Price: 1 USD

Brand Name : Zion communication OR OEM

Model Number : Automotive Cable

Certification : CE, RoHS, VDE, UL, CUL, LPCB

Place of Origin : China

MOQ : 20 KM

Payment Terms : T/T, L/C

Supply Ability : 1000KM / Month

Delivery Time : 25 working days

Packaging Details : 100M, 200M, Roll, Carton

Conductor : Soft-annealed copper according to ASTM B

Insulation : XLPE Ultra-Thin wall flame-retardant,halogen-free

Standard Compliance : SAE J1678

Special properties : Flexible

Technical Parameters : –40°C to +125°C

Contact Now

WXC Automotive Cable
Product Description:
Conductor			Soft-annealed copper according to ASTM B
Insulation			XLPE Ultra-Thin wall flame-retardant,halogen-free
Standard Compliance			SAE J1678
Special properties			Flexible
Technical Parameters			–40°C to +125°C
Application:
This XLPE insulated low-voltage cable is designed for used at nominal voltage of 60v dc (60V AC rms) or surface vehicles electrical systems.

Zion's Hot Types of WXC Automotive cable
Type		Conductor		Insulation		Cable
SIZE	Nominal cross- section	No. and Dia. of Wires	Diameter of Conductor max.	Nominal thickness	Overall Diameter Max.	Weight approx.
AWG	mm²	No./mm	mm	mm	mm	Kg/km
22	1x0.35	7/0.25	0.76	0.2	1.4	4.0
20	1x0.50	7/0.32	0.97	0.2	1.6	7.0
18	1x0.80	19/0.23	1.17	0.2	1.8	8.0
16	1x1.3	19/0.28	1.45	0.2	2.0	12.0
14	1x2	19/0.36	1.8	0.2	2.4	19.0
12	1x3	19/0.45	2.3	0.24	3.0	30.0
* Note: Other configurations, sizes, colors and length not specified herein are available upon request.

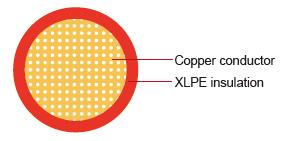

WXC Automotive Cable Images
