3C-2V+2x0.50, Figure 8 Communication RG6 +2C coaxial cable with power siamese cable for CCTV/CATV

Product Categories

HANGZHOU ZION COMMUNICATION CO., LTD

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 3C2V2x050 Figure 8 Communication RG6 2C coaxial cable with power siamese cable for CCTVCATV
Brand: hellosignal
Price: 1 USD

Brand Name : hellosignal

Model Number : CCTV SURVEILLANCE CABLE

Certification : UL, CE, RoHS

Place of Origin : China

MOQ : 30 KM

Payment Terms : T/T, L/C

Supply Ability : 3000KM / Month

Delivery Time : 25 working days

Packaging Details : 500FT, 1000FT Wooden Reel or Spool in Box

Conductor : Copper

Dielectric : Foamed Polyethylene

Shield1 : Al Foil

Shield2 : CCA-Braid(48%)

Power Wire Conductor : CCA

Power wire Diameter of insulation : PVC (Red,Black)

Jacket : PVC/PE/LSZH

Contact Now

3C-2V+2x0.50,Figure 8 75 Ohm CCTV coaxial Cable NO.7102062


Construction Parameters:
Inner Conductor	0.50mm Copper
Dielectric	3.2mm Foamed Polyethylene
Shield 1	Al Foil
Shield 2	0.12mmCCA-Braid(48%)
Jacket	5.0mm PVC/PE/LSZH
Power Wire Conductor	2x(11*0.25mmCCA )
Power wire Diameter of insulation	1.6mmPVC (Red,Black)
Jacket	4.4mm PVC/PE/LSZH
Application	For Use in Longer CCTV Run Lengths
Electrical Characteristics:
Inner Conductor Resistance	The Max. at 20℃ shall be<87.6Ω/km
Inner Conductor Resistance	The Max. at 20℃ shall be<87.6Ω/km
Capacitance	69±4 pF/m
Impedance	75 ± 3 Ω
Return loss	between 5 and 1000MHz: > 20dB
Velocity of Propagation
Sparker Test (VAC)	1

Mechanical and Envrionmental Properties
Cable bend radius	10 times the cable diameter
Operating Temp Range	-20 ℃ to 60℃
Cable diamensions	5.0×4.4mm

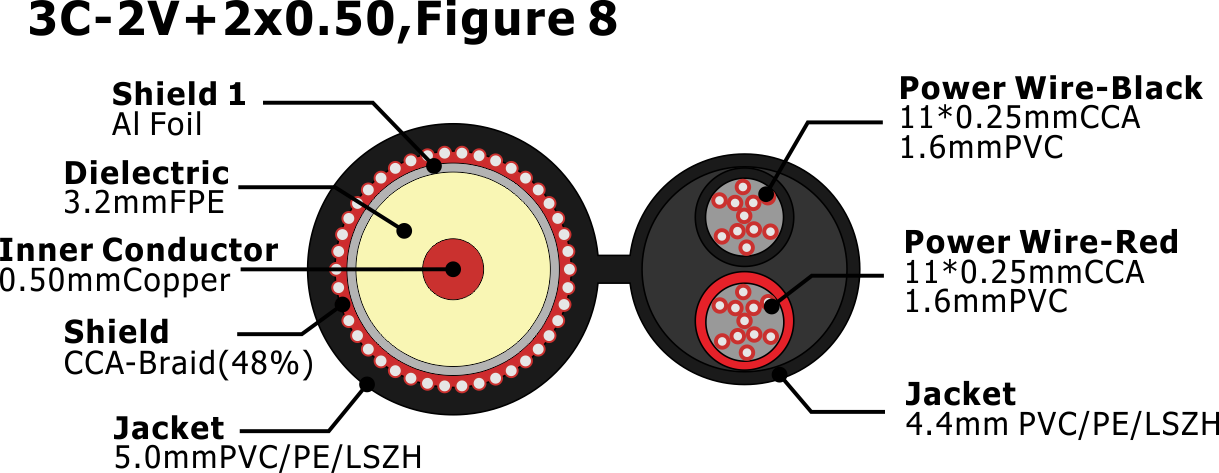

Cross Section
















Attenuation(20℃):
Frequency (MHZ)	Max Attenuation(dB/100ft)	Max Attenuation (dB/100m)
10		4.80
30		8.30
72		12.90
88		14.20
90		14.40
135		17.60
180		20.40
220		22.50
270		24.90
440		31.80
750		41.60
770		42.10





Order Informations:
Marking	HELLOSIGNAL 3C-2V+2x0.50,Figure 8 CCTV COAXIAL CABLE 7102062 ×××M/FT
Package	Inquired Length on Reel,Pull Box,Plastic Spool,wooden Spool,pallet …
Delivery time	Normally 25 days after received the deposit.
Brand	HELLOSIGNAL^® OR OEM
